Paper 2 CS Programming Languages Comp Graphics Part 6

“Visibility problem in 3D graphics
1. Painter’s algorithm
– A depth sorting method
– Surfaces are sorted in the order of decreasing depth
– Surfaces are drawn in the sorted order, and overwrite the pixels in the frame buffer – Subtle difference from depth buffer approach: entire face drawn
– Two problems:
• It can be nontrivial to sort the surfaces
• There can be no solution for the sorting order
2. Back Face Culling
– Back faces: faces of opaque object which are “pointing away” from viewer
– Back face culling – remove back faces (supported by OpenGL)
How to detect back faces
– If we find backface, do not draw, save rendering resources
– There must be other forward face(s) closer to eye
– F is face of object we want to test if backface
– P is a point on F
– Form view vector, V as (eye – P)
– N is normal to face F
3. View-Frustum Culling
– Remove objects that are outside the viewing frustum
– Done by 3D clipping algorithm (e.g. Liang-Barsky)
4. Ray Tracing
– Ray tracing is another example of image space method
– Ray tracing: Cast a ray from eye through each pixel to the world
5. Z(Depth buffer algorithm)
Reference: https://web.cs.wpi.edu/~emmanuel/courses/cs543/slides/lecture08_p2.pdf“

“→ The above iterative code is computes the GCD of two numbers using euclidean algorithm.
→ The procedure is to subtract smaller number from larger. So that we can reduce larger number then doesn’t change the value of GCD.
→ if we performing number of iterations based on condition the larger of two numbers will end up with GCD.”

“*(kd -> name +2) /* this is wrong statement */
We have to write *((*kd).name+2).
Note: They are specifically asked about a value stored at that location of the string by using “”*”” outside the brackets. Otherwise, option A and B would be correct.”

“Step-1: In main function, number variable has been initialized to 30.
Step-2: We pass address of number as parameters in the square function. As per the concept of function overloading in C++ the second square function will be executed.
Step-3: –(*y) will be executed first since decrement operator has the higher precedence than multiplication.
*x = (*x) * –(*y);
*x = 30 * 29;
*x = 870
Note: x is a pointer variable and it holds the address of the variable number.”

“The variable “i” is static variable and the value of that variable will be retained between multiple function calls.
first line of f() is executed only once.
Depending upon the value “n” and “i”, the function f() will until n>=5.
You can find the tracing of function f() from the below Execution of f(1)
i = 1
n = 2
i = 2
Call f(2)
i = 2
n = 4
i = 3
Call f(4)
i = 3
n = 7
i = 4
Call f(7)
since n >= 5 return n(7) with return value = 7”

“for loop starts from 0 to 20 and increments with 2 at each iteration.
k = 0 % 3 = 0
k = 2 % 3 = 2
k = 4 % 3 = 1 // prints 4
k = 6 % 3 = 0
k = 8 % 3 = 2
k = 10 % 3 = 1 // prints 10
k = 12 % 3 = 0
k = 14 % 3 = 2
k = 16 % 3 = 1 // prints 16
k = 18 % 3 = 0
So, Output is 4 10 16”

“If we are given p instead of *p then it prints the address of k but we are printing the value of k.
The same rule applies in **m.
Output is 5 5 5”

“The continue statement is used inside loops. When a continue statement is encountered inside a loop, control jumps to the beginning of the loop for next iteration, skipping the execution of statements inside the body of loop for the current iteration.
In the given code, there are no statements after continue statement , So it won’t effect on the output.
The loop will executes for five iterations,For each iteration it will print corresponding value i.e; 12345.”

“→The for loop will execute three times for a given i values 0,1,2.
→For a given i = 0:
a = cos(pi * 0/2) [ PI*0 is 0]
a = cos(0) = 1, if condition true and it will print 1
→For a given i = 1
a = cos (pi/2) [pi*1 is pi]
a=cos(1.57075) whose value approximately equal to zero
a = 0, Here the condition is false then else part will execute and it will print 0
→For i = 2
a = cos(pi) [pi*2/2 is nothing but pi]
a = -1, ,Here also condition is true and it will execute if part and it will print “1”
→Finally it will print 101.”

“From the below statements
y=y+1;
z=x+y;
x=x+1
First statement: “y” value is incremented by 1
Second statement : that incremented value is added to x and stored into “z”
Third statement : “y” value is incremented by 1
z = (x++) + (++y);
X++ post-increment , so it will perform action which is addition and later the value of “x” is incremented .
++y pre-increment , here first value “y” is incremented and updated value is added to value x.
Finally the result will store into z.
The sequence of operations you can find from the below statements
z=x+y; //z = x + (++y)
x=x+1 //z = (x++) + (++y)”

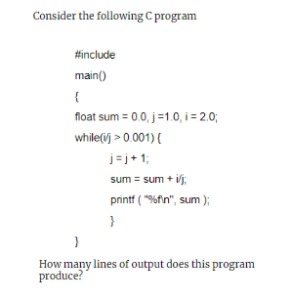

“Iteration-1:
while (1.000000 > 0.001)
{
j=2.0
sum=0+1.000000;
printf(“”%f\n””,sum); /* It will print 1.000000 */
}
Iteration-2: 1.500000
Iteration-3: 1.750000
Iteration-4: 1.875000
Iteration-5: 1.937500
Iteration-6: 1.968750
Iteration-7: 1.984375
Iteration-8: 1.992188
Iteration-9: 1.996094
Iteration-10: 1.998047
Iteration-11: 1.999023
The program will terminate after 11th iteration. So, it print 11 lines.”

“Call by Value:
The call by value method of passing arguments to a function copies the actual value of an argument into the formal parameter of the function. In this case, changes made to the parameter inside the function have no effect on the argument.
foo(x,x) —->foo(5,5)
Modification of x and y values won’t effect in the main program, So still x will hold value “5” because the data type is integer.
Call by Reference:
The call by reference method of passing arguments to a function copies the address of an argument into the formal parameter. Inside the function, the address is used to access the actual argument used in the call. It means the changes made to the parameter affect the passed argument.
Function call foo(x,x)—foo(5,5) calls the function
void foo(int x, int y)
{
x+=y;
y+=x;
}
Here x and y variables, both pointing to same variable “x” in the main function.
So, if any modification done in the function it automatically reflect in the main function.
x+=y means x=x+y=5+5=10 // The variable “x” of main function will hold value 10 which used by both local variables of x and y
y+=x means u=y+x= 10+10=20 // Y value is 10 because , it point to variable ”x” in the main function.”

short [5] = 5×2 = 10 max[float, long] = max [4, 8] = 8 Total = short[5] + max[float,long] = 10+8 = 18

“Here, possibility to happen “dangling if” error. But according to else statement it is matched with above if statement only.
We can write code segment is like this because to avoid “dangling if”
if(a>b)
{
if(b>c)
{ s1; }
else
{ s2; }
}
→ To execute s2, it (a>b) should be TRUE. And it (b>c) should be FALSE.
Hence, Option-D is correct”

Given statement consists of three operators which are pre-increment , post-increment and equal to operator. According to operator precedence and associativity, the order of operators evaluation is post-increment,pre-increment and finally equal to operator. But one variable value is modifying multiple times in the same expression means that behaviour is undefined behaviour which is compiler dependent.

“In this question, we have to remind one point about “static” storage class.
Static storage class by default value is 0.
Step-1: We are calling inc( ) in main function. So, it will enter into inc() function.
Here, we are using pre increment function, so it replaced 0 with 1.
Step-2: Second inc() in main function. So, it will enter into inc() function.
Here, we are using pre increment function, so it replaced 1 with 2.
Step-3: Third inc() in main function. So, it will enter into inc() function.
Here, we are using pre increment function, so it replaced 2 with 3.
Note: The static storage class instructs the compiler to keep a local variable in existence during the life-time of the program instead of creating and destroying it each time it comes into and goes out of scope.”

“Initial values of i and j are 6720 and 4 respectively
Iteration 1:
i=6720
j=4
i%j==0 which is 6720%4 ==0 condition is true then
i=i/j=6720/4=1680
j=j+1=5
Iteration-2:
i=1630
j=5
i%j==0 which is 1680%5 ==0 condition is true then
i=i/j=1630/5=336
j=j+1=6
Iteration-3: i=336
j=6
i%j==0 which is 336%6 ==0 condition is true then
i=i/j=336/6=56
j=j+1=7
Iteration-4:
i=56
j=7
i%j==0 which is 56%7 ==0 condition is true then
i=i/j=56/7=8
j=j+1=8
Iteration-5:
i=8
j=8
i%j==0 which is 8%8 ==0 condition is true then
i=i/j=8/8=1
j=j+1=9
Iteration-6:
i=1
j=9
i%j==0 which is 1%9 ==0 condition is false.
At this iteration, the “j” value is 9.”

“In the given program fragment, three variables are there
Ordinary variable -a // value will be stored
Pointer variable -b // address of variable will be stored

Pointer to pointer variable(double pointer) -c // address of pointer variable will stored.
a=4 means storing/assigning value to “a”.
**c means value at(value at(c)) =value at(value at(&b)) (c holds address of pointer “b”)
=value at(&a) (b holds the address of “a”)
Memory location of variable “a”, value 5 is stored/assigned into the variable.”

“Option A: General declaration of integer variable.
Option B: General declaration of character variable.
Option C: It is type casting. But given cast also same type.
Option D: We have to include a file otherwise it treated as compiler error.”

“Step-1: initial a=3 but we are given storage class is static.
Step-2: In printf( ) we are given post decrement. So, it will print 3 then decrements.
Step-3: if(2) then we are calling main() function, a=2 because of static otherwise it will be 3 only.
Step-4: It will print 2 and next iteration will print 1.”
